For industrial electronic devices, power supply is often the core of electronic equipment, is the heart of the system, its performance will directly affect the reliability of the entire electronic equipment. According to statistics, 50% of the failures of electronic equipment come from the power supply. With the continuous improvement of the digital degree of modern industry, a reliable, safe and efficient power supply is becoming more and more important. At present, major power supply companies are increasing the development of high-performance power modules, in order to further improve efficiency, reduce the size, reduce electromagnetic interference, make the application more simple and reliable. Among them, the isolated switching power supply has the characteristics of small size, light weight, high reliability, impact resistance, good isolation, wide temperature range, without additional components can be used directly and welding plate, etc., has become a popular product favored by the market.

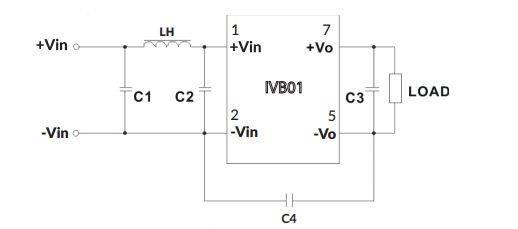

Electromagnetic compatibility (Class B) circuit
As a well-known supplier of Power products, XP Power's high-performance DC-DC converters are certified and meet key power requirements. Whether you need to optimize administrative costs, development time, isolation, or installation flexibility, XP Power provides a solution that is easy to integrate, secure, and efficient. Its products include fixed-programmable AC-DC power supplies and DC-DC converters, ranging from simple circuits to complex high-reliability systems. Among them, DC-DC products can meet the power needs of medical, industrial and semiconductor manufacturing. Here's a look at XP Power's new IAB/IEB/IVB line of DC-DC converters.
IAB/IEB/IVB series DC-DC converter
The XP Power IAB/IEB/IVB series DC-DC converter is a 1W DC-DC converter packaged with SIP4 or SIP7, with a size of 11.6 x 10.16 x 6.0mm and available in both single and dual output options. These power converters are characterized by continuous short-circuit protection, high efficiency, and compact durability. In addition, they feature isolation voltage ratings of 1.5kVDC or 3kVDC, ±10% input range, and operating temperature ranges from -40°C to +105°C, as well as > 3.5 Mean time between failures (MTBF) of Mhrs. As a result, these low-power DC-DC converters are ideal for industrial electronics, robotics, and instrumentation applications.
The Dual output IAB01 series is the ideal isolation solution for power rails in distributed power supply architectures such as analog, digital, data and relay circuits. The series is packaged in SIP7 PCB and supports an output voltage range of ±3.3VDC to ±24VDC and a wide operating temperature range of -40°C to +105°C. These products are compact and rugged, with high efficiency, 1.5kVDC isolated voltage, short circuit protection, high operating temperature and high MTBF.
The IEB01 series is an unregulated single-output DC-DC converter packaged with SIP4 PCB. It has a rated isolation voltage of 1.5kVDC, a 20pF isolation capacitor, and a voltage output range of 3.3VDC to 24VDC. This series of converters has the characteristics of high efficiency, short circuit protection and high operating temperature.
The IVB01 series is an unregulated single-output DC-DC converter packaged in SIP7 PCB with a rated isolation voltage of 3kVDC and a wide operating temperature range from -40°C to +105°C. This series of power converters has short circuit protection, durable and efficient design.

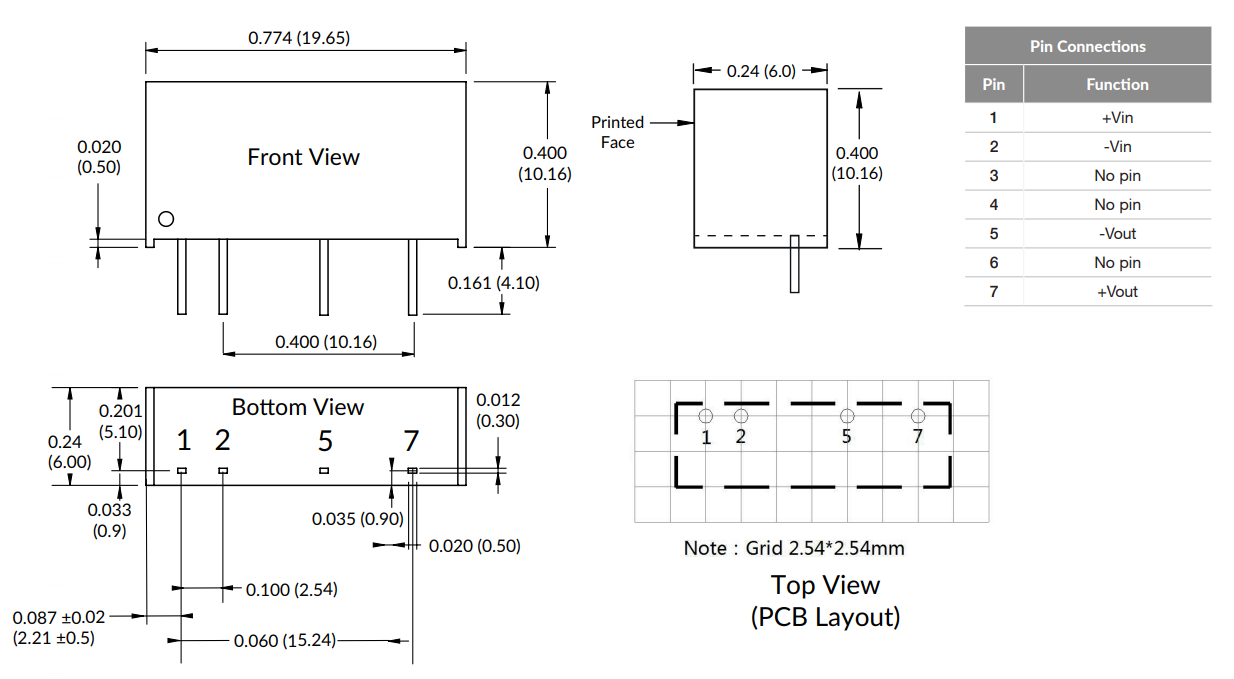

Pin definition
