The Texas Instruments MSP430 ultra-low Power microcontroller family consists of multiple devices with different sets of peripherals for a variety of applications. The architecture is optimized with five low power modes to extend battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generator to help maximize code efficiency.

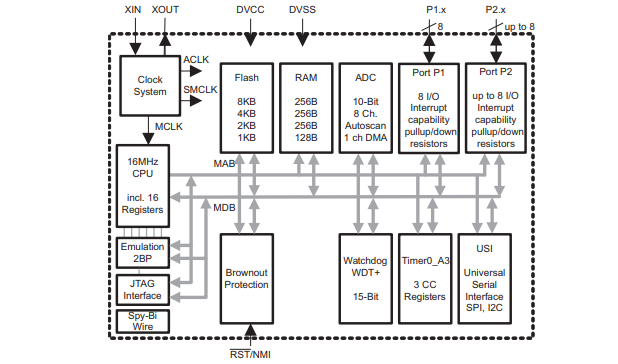

Functional block diagram
The digitally controlled oscillator (DCO) allows awakening from low-power mode to active mode in less than 1µs. The MSP430G2332 series microcontrollers are ultra-low power mixed-signal microcontrollers with a built-in 16-bit timer, up to 16 I/O touch pins, and built-in communication capabilities using a common serial communication interface.
The MSP430G2332 series has a 10-bit a /D converter,Typical applications include low-cost sensor systems that capture analog signals, convert them to digital values, and then process the data for display or transmission to host systems

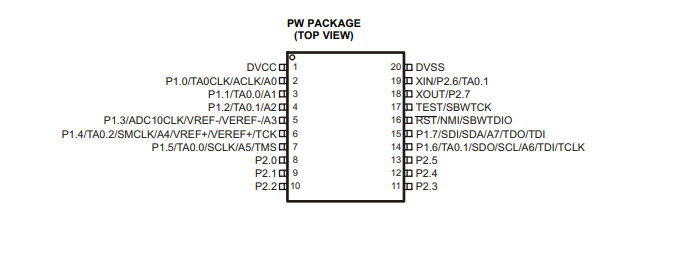

Device pin lead
