The PIM4610 and PIM4710 pci of Flex Power Modules simplify the design of blade servers based on advanced tca standards and other applications. The PIM4x10 module has a rated power of 1080 W and an efficiency level of 98.8%. Their input range is 36 V (DC) to 75 V (DC). The module is an industry standard quarter brick size package with unique PIM nails.

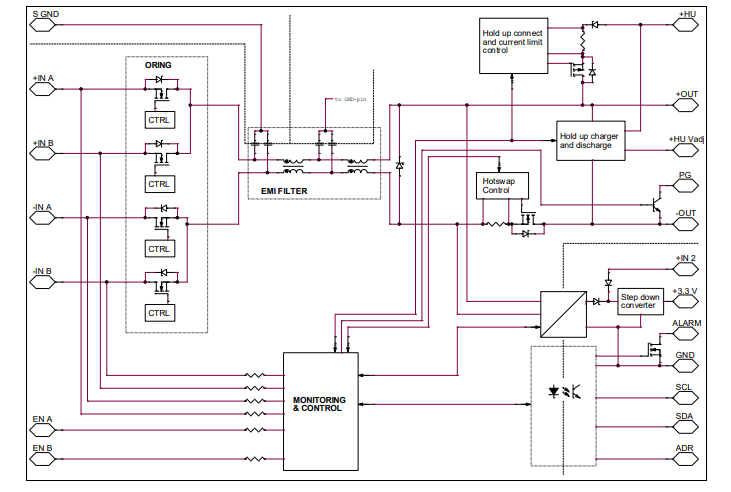

Fundamental Circuit Diagram
This PIM is available in two variants, including the PIM4610 rated at 16 A and the PIM4710 rated at 20 A. PIM4x10 series has CISPR B-level EMI filtering, inrush protection and hot plug, dual (A/B) feeding or distribution, blocking management, reverse polarity protection and auxiliary power management rails. These PIMs are designed to meet the requirements of PICMG 3.0 ATCA basic specification.

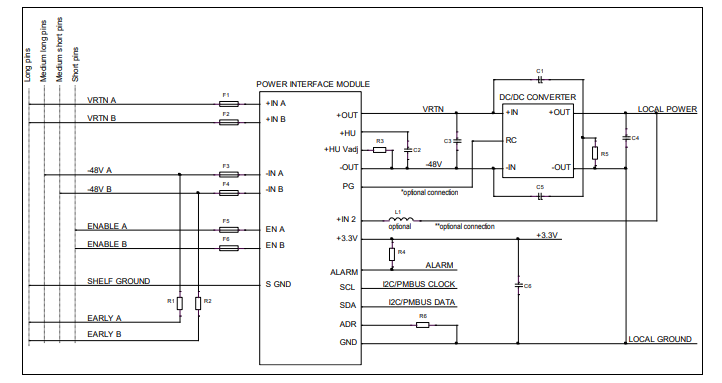

Typical ATCA Application Circuit
PIM4x10 module can be used in the Advanced Telecom Computing Architecture (Advanced TCA) specification, which aims to provide an open, multi vendor architecture for the next generation of carrier class communication equipment. These modules are suitable for industrial or ICT applications using distributed power architecture.
