Bourns 2036-xx-SM Precision Gas Discharge tube Surge Arrester

Technology Cover
Fecha de Publicación: 2022-12-24, Bourns Inc.

Bourns now offers surface mount (SM) 3-electrode gas discharge tube (GDT) lightning protection devices. The quality and functionality of the industry leading Bourns Miniature 2036 TRIGARD Series GDT continues in this new SM version of "pick and place" manufacturing technology. Due to their high energy processing capacity, long and stable lifetime performance, and low capacitance of less than 2 pF, 2036 SM devices are ideal for board-level protection for high bandwidth applications such as xDSL, wireline broadband, and high speed Ethernet.

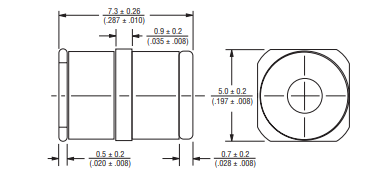

Product Dimensions



The Bourns Subminiature gts family is only 5mm in diameter, making it the smallest high-performance gts in the telecom industry. Bourns gts is designed to prevent damage caused by transient disturbances, acting as a "crowbar" during conduction, generating a short circuit to the ground. When a voltage transient surge exceeds the defined GDT breakdown voltage level, the device will be ionized and conduction will occur within a fraction of a microsecond. When the surge passes and the system voltage returns to normal, the GDT returns to the high impedance (off) state.
