The RT9020 is a high-performance, 500mA LDO regulator that delivers extremely high PSRR and ultra-low drop, making it ideal for portable RF and wireless applications with demanding performance and space requirements. The RT9020 has a static current as low as 25μA, further extending battery life.

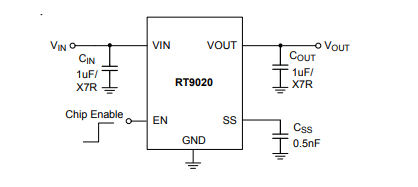

Typical Application Circuit

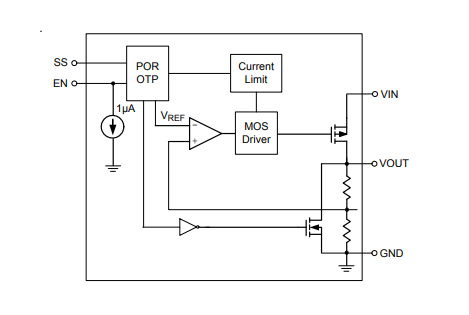

Function Block Diagram
The RT9020 also uses low-ESR ceramic capacitors, reducing the amount of circuit board space required for power applications, which is critical in handheld wireless devices. Typical shutdown power consumption of the RT9020 is 0.7μA and startup time is less than 70μs(without CSS). Other features include ultra-low voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. Available in small packs of SOT-23-5 and SC-70-5.

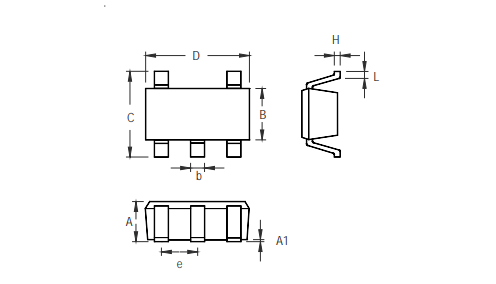

Outline Dimension
