The XC6204/XC6205 series is a high precision, low noise, positive voltage LDO voltage regulator manufactured by CMOS process. The series achieves high ripple suppression and low drop and consists of a standard voltage source, error corrector, current limiter and phase compensation circuit, as well as a drive transistor.

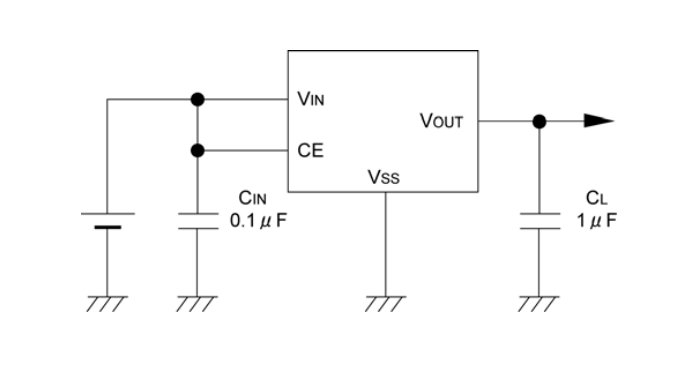

Typical application circuit
The output voltage ranges from 0.9V to 6.0V and the step size of 0.05V can be selected. The series is also compatible with low ESR ceramic capacitors for increased output stability. This stability can be maintained even during load fluctuations due to the excellent transient response of the series. The retraction circuit of the current limiter also acts as a short protection for the output current limiter and output pins. The CE function can turn off the output, thus greatly reducing power consumption.

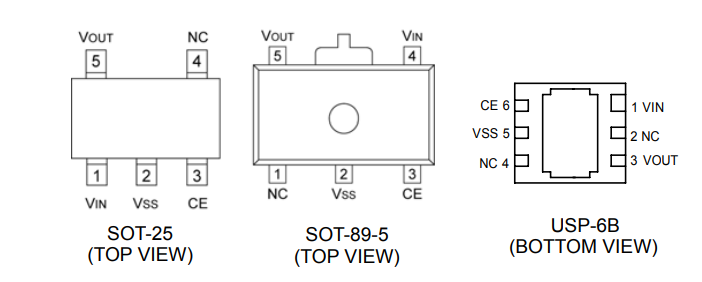

Pin arrangement
